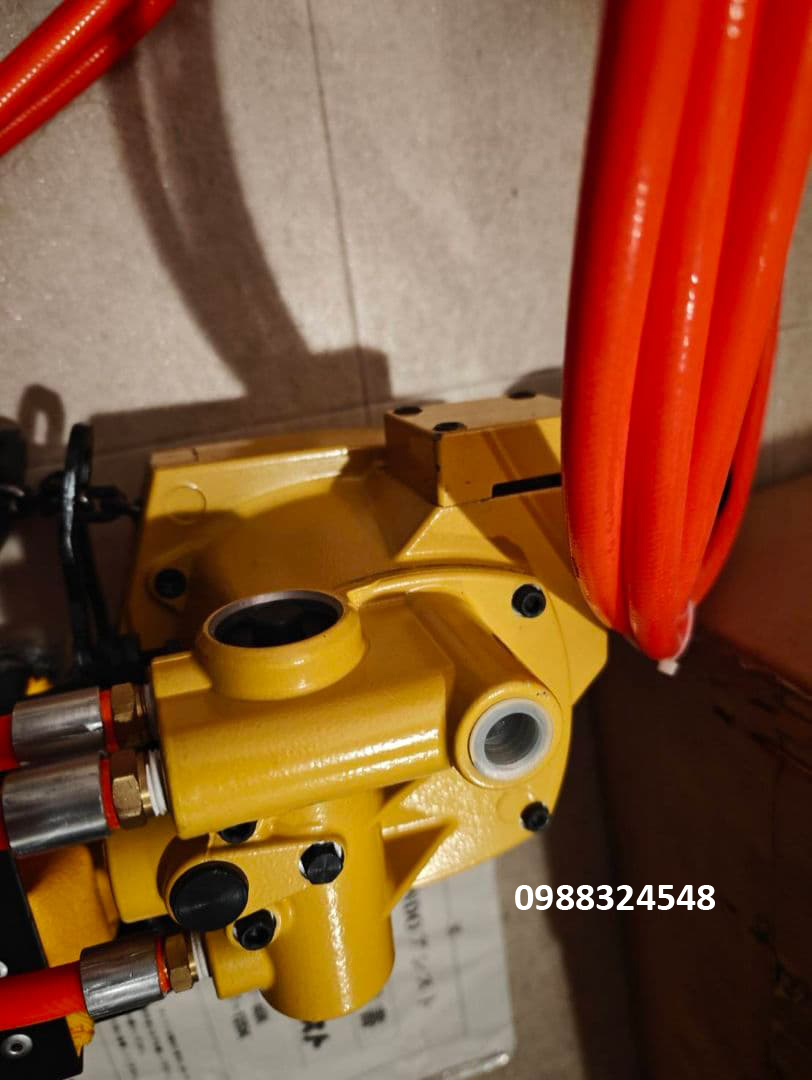

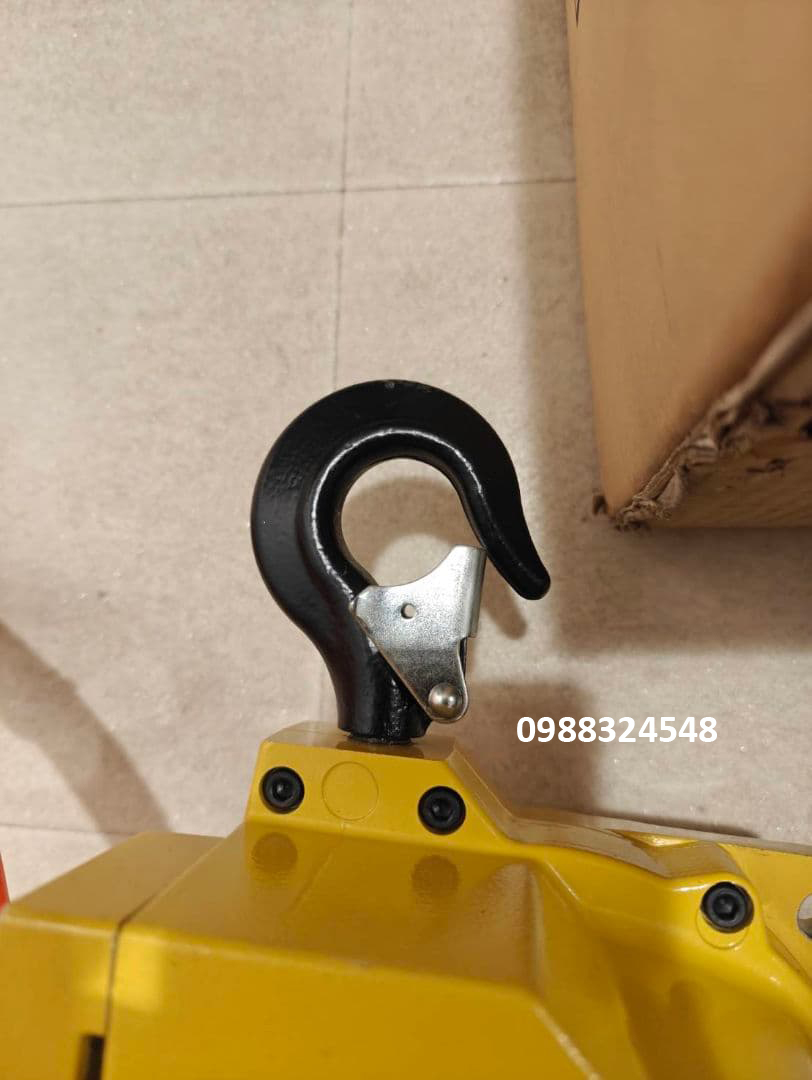

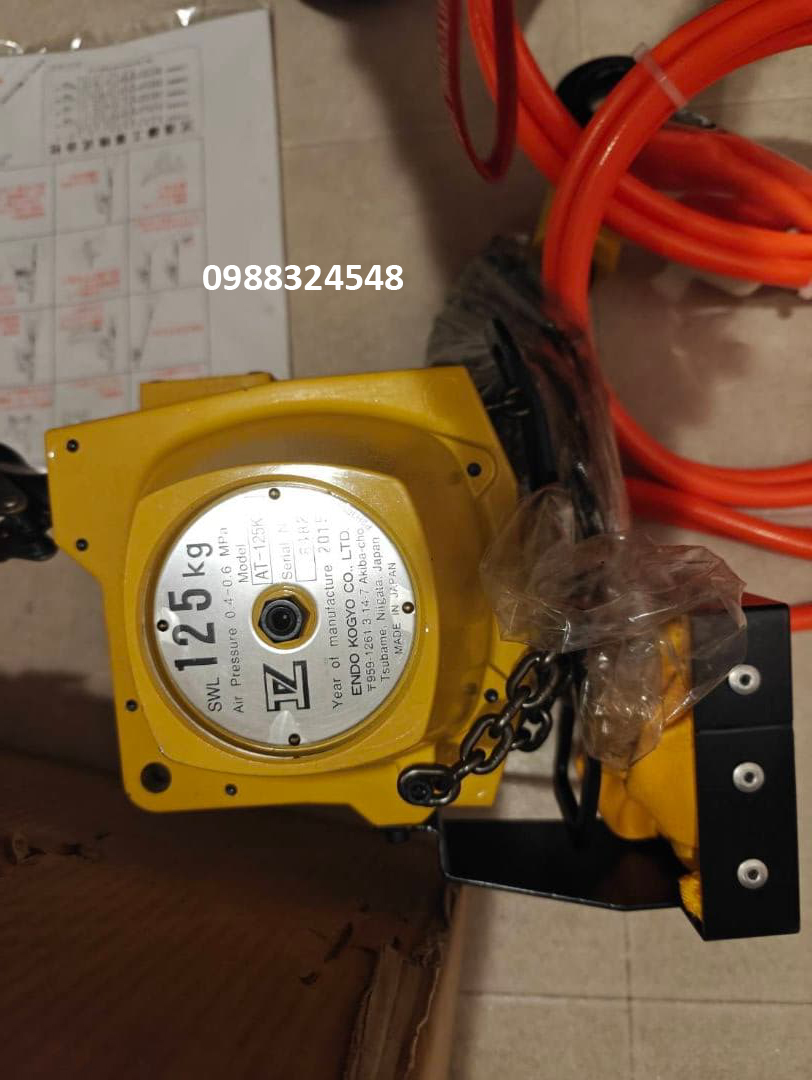

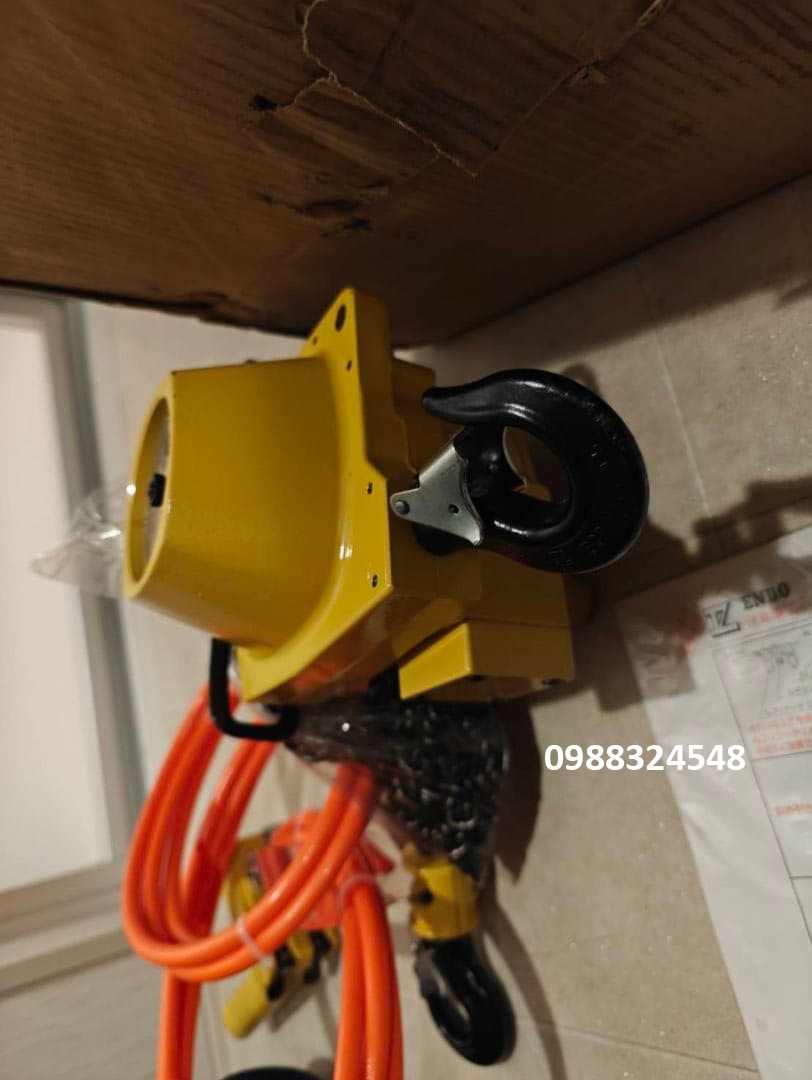

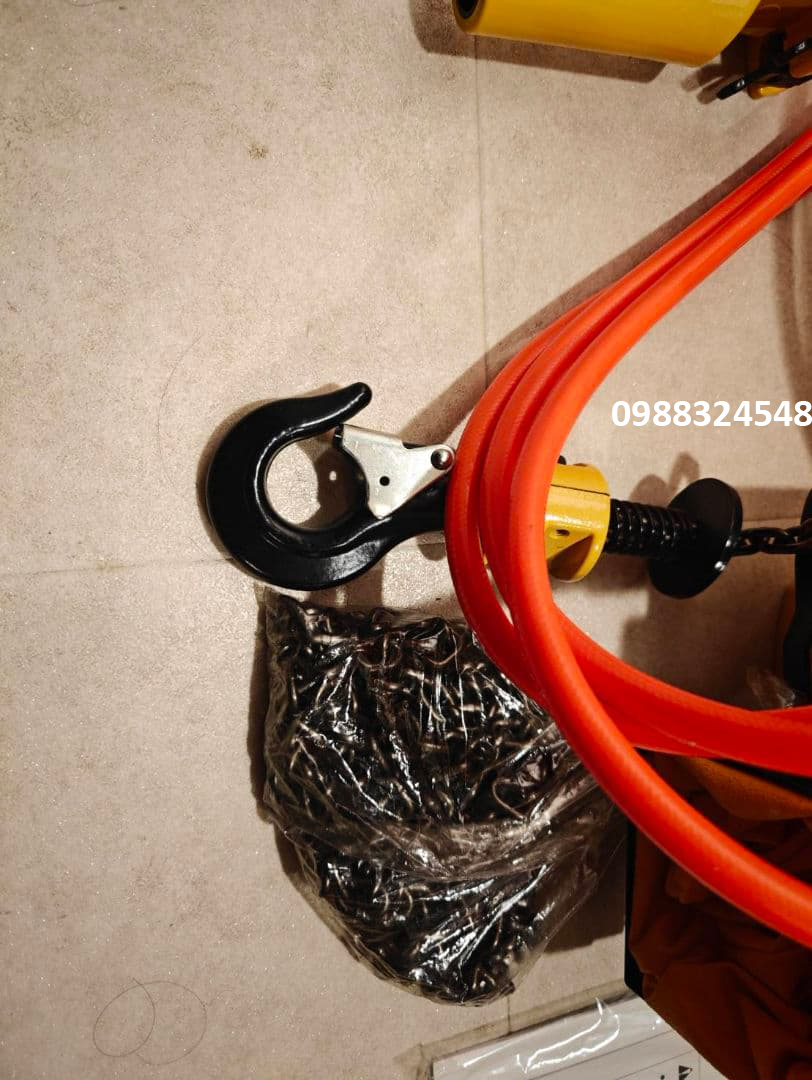

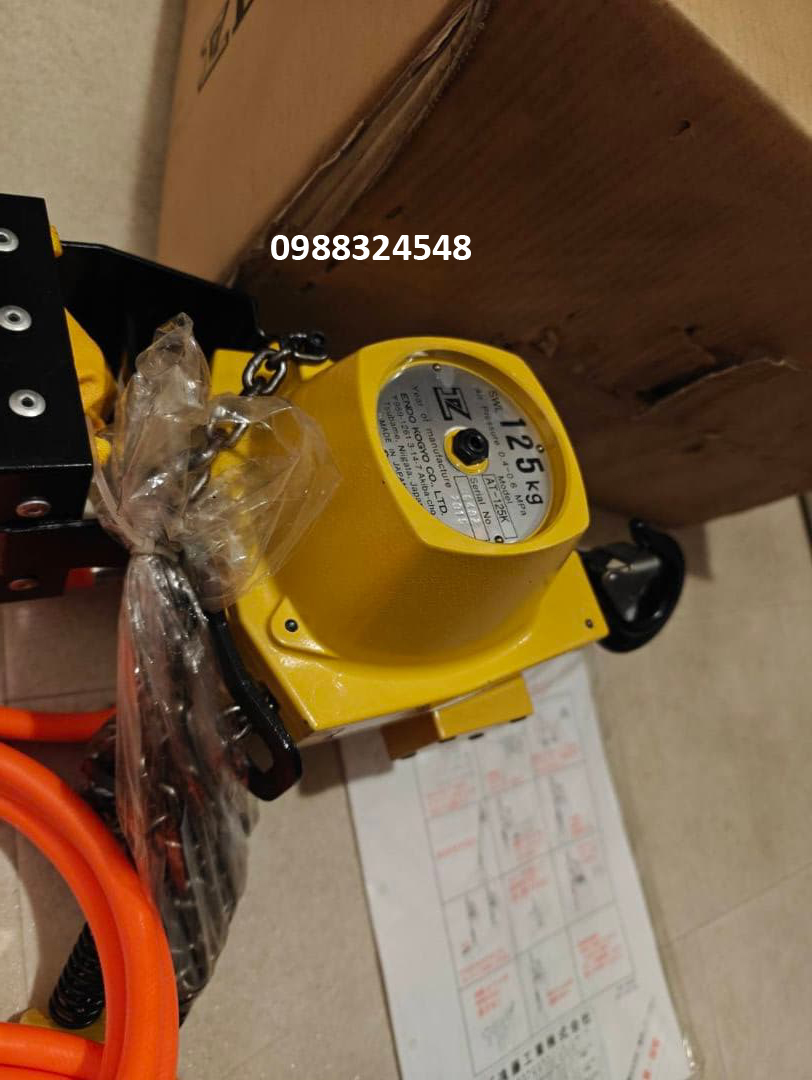

Pa lăng khí nén 125kg Endo AT-125K / AT-125K Endo Air Chain Hoist

Pa lăng khí nén 125kg Endo AT-125K / AT-125K Endo Air Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: AT-125K
  • Tải trọng: 125kg
  • Chiều cao nâng: 3 mét
  • Tốc độ nâng hạ: 10-14.5 mét/ phút
  • Điều khiển bằng nút bấm
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Endo Kogyo

Tags:

AT Series Endo Air Hoist

  • Its capacity is 60kg-125kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance.

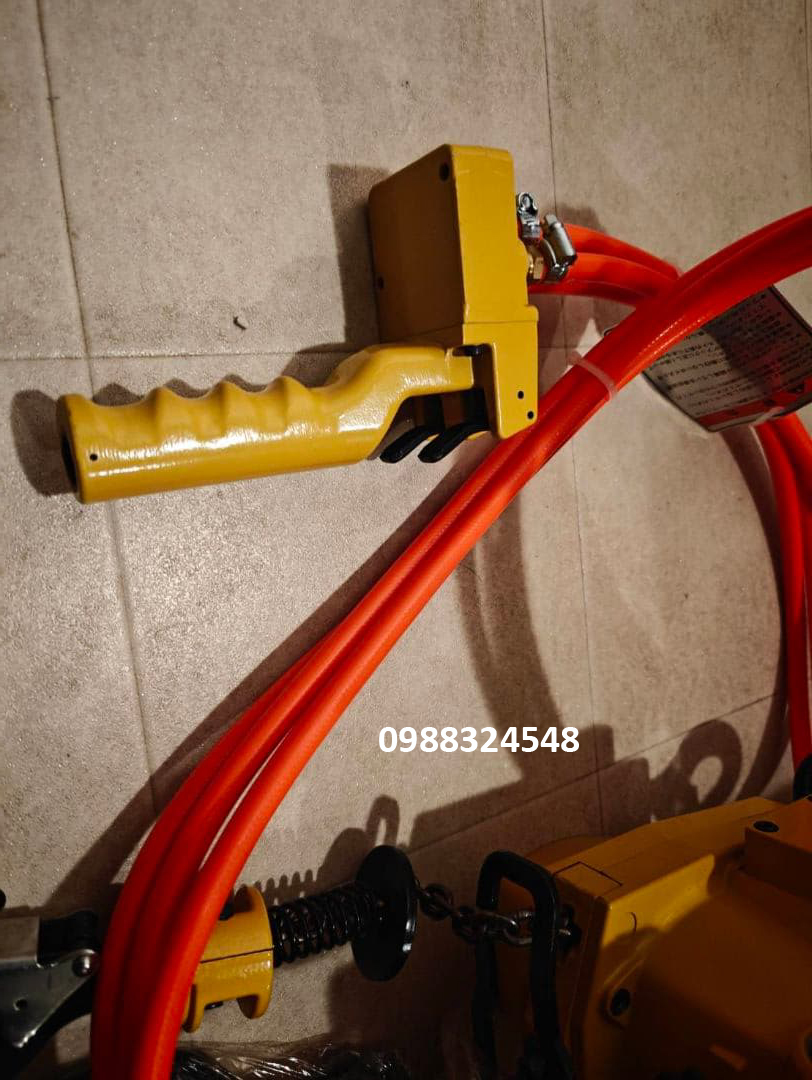

  • The control button on the pendant switch allows easy operation.
  • The load chain is extendable.The AT-60-K-5 and AT-125-K-5 models are equipped with an emergencystop button on the pendant switch as standard.

    • AT-125K Endo Air Hoist Drawing


    AT Series Endo Air Hoist

    Model Rated load
    (kg)    		 Stroke
    (m)    		 Air
    pressure
    Mpa(kgf/c㎡)    		 Lifting
    speed
    (m/min)    		 Air
    consumption
    (m³/min)    		 Chain
    (size x fall)    		 Air inlet Mass
    (kg)    		 Emergency
    stop button
    AT-60K 60 3 0.4(4) 16.5 0.52 4.0×1 Rc 3/8 12.3 －
    0.5(5) 20.0 0.67
    0.6(6) 23.5 0.85
    AT-60K-5 60 3 0.4(4) 16.5 0.52 4.0×1 Rc 3/8 13.0 〇
    0.5(5) 20.0 0.67
    0.6(6) 23.5 0.85
    AT-125K 125 3 0.4(4) 10.0 0.55 4.0×1 Rc 3/8 12.5 －
    0.5(5) 12.0 0.71
    0.6(6) 14.5 0.9
    AT-125K-5 125 3 0.4(4) 10.0 0.55 4.0×1 Rc 3/8 13.2 〇
    0.5(5) 12.0 0.71
    0.6(6) 14.5 0.9

    AT Endo Air Hoist Instruction Manual
