Pa lăng kéo tay 1.6 tấn Elephant H-100 / H-100 Elephant Manual Chain Hoist

Pa lăng kéo tay 1.6 tấn Elephant H-100 / H-100 Elephant Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Pa lăng kéo tay 1.6 tấn Elephant H-100 / H-100 Elephant Manual Chain Hoist

  • Elephant's high-tech load chains are approved by DIN 5684, one of the world's strictest standards. This is the special heat-treated load chain of Grade V (100kgf/mm²) whose tensile strength far surpasses JIS Grade V.
  • Double pawls supporting fail-safe brake mechanism. Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.

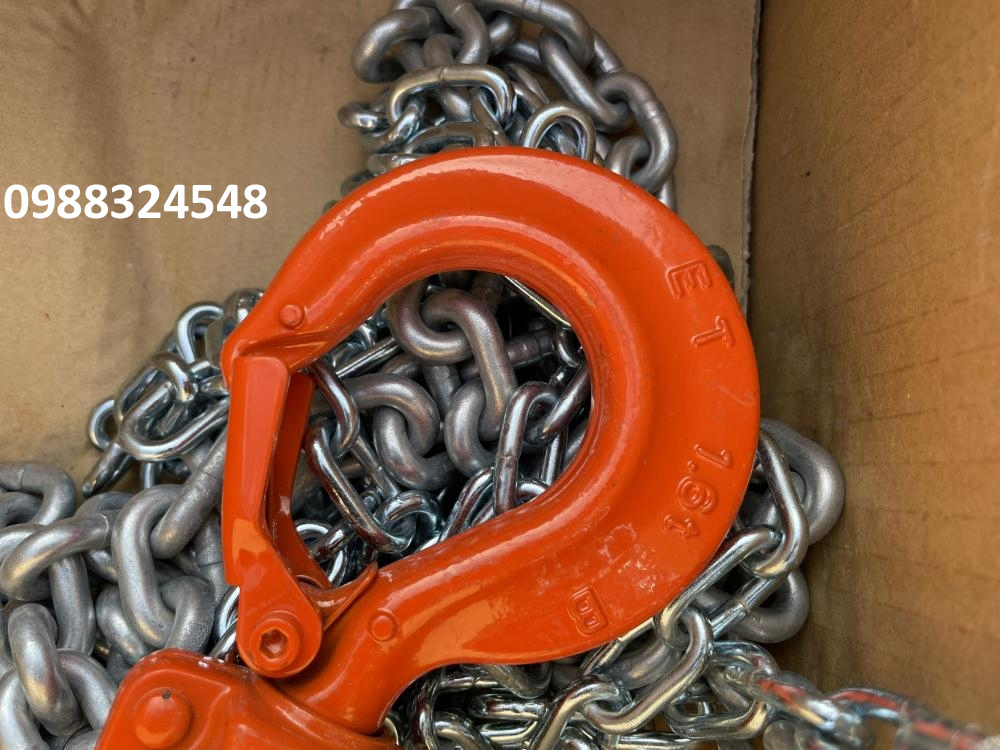

  • Hooks of easier handling shape. The opening of the hooks has been made wider for easier handling and working. And, if by any chance the hook is overloaded, there is no fear of its breaking, and it will simply start straightening out gradually, avoiding any load drop or human injury.
  • The tough gear case, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.
  • Rolled-edge hand wheel cover. This provides smooth operation of the hand chain when pulled sideways.
  • Strong and least-corrosive electrostatic powder painting.

    • Pa lăng kéo tay 1.6 tấn Elephant H-100 / H-100 Elephant Manual Chain Hoist

    Model H-1.6
    Capacity ( ton )
    1.6
    Standard lift ( m )
    2.5
    Headroom ( mm )
    338
    Hand effort to lift full working load ( kg )
    34
    Load chain
    7.1mm x 1 fall
    Grade of chain
    V
    Net weight ( kg )
    14.7

    H-100 Series Elephant Chain Hoist Manual Instruction

    H-100 Series Elephant Manual Chain Hoist Breakdown
